Normal Ultrasound Assessment of the Renal Allograft

Clinical History

A 43-year old man with a recent history of  renal transplant surgery was referred to have an ultrasound assessment of the new renal allograft.

Case Description

The renal allograft appeared normal in size, outline, echotexture, and perfusion with no evidence of renal artery stenosis encountered.

Diagnosis/ Discussion/ Treatment/ Follow up

The ultrasound report was sent to the referring nephrologist.

During ultrasound assessment of the renal allografts, it is important to use a high frequency curvilinear transducer (6 – 7 MHz). This provides a reasonable balance between the acquisition of great image resolution, and having enough depth to visualise the graft and structures deep to and surrounding the graft.

Sonograms

B-Mode sonogram of the normal transplant kidney in the left iliac fossa (LIF)
B-Mode sonogram of the normal transplant kidney in the left iliac fossa (LIF)
Colour Doppler imaging of the normal transplant kidney showing excellent perfusion of the graft
 Colour Doppler imaging of the normal transplant kidney showing excellent perfusion of the graft

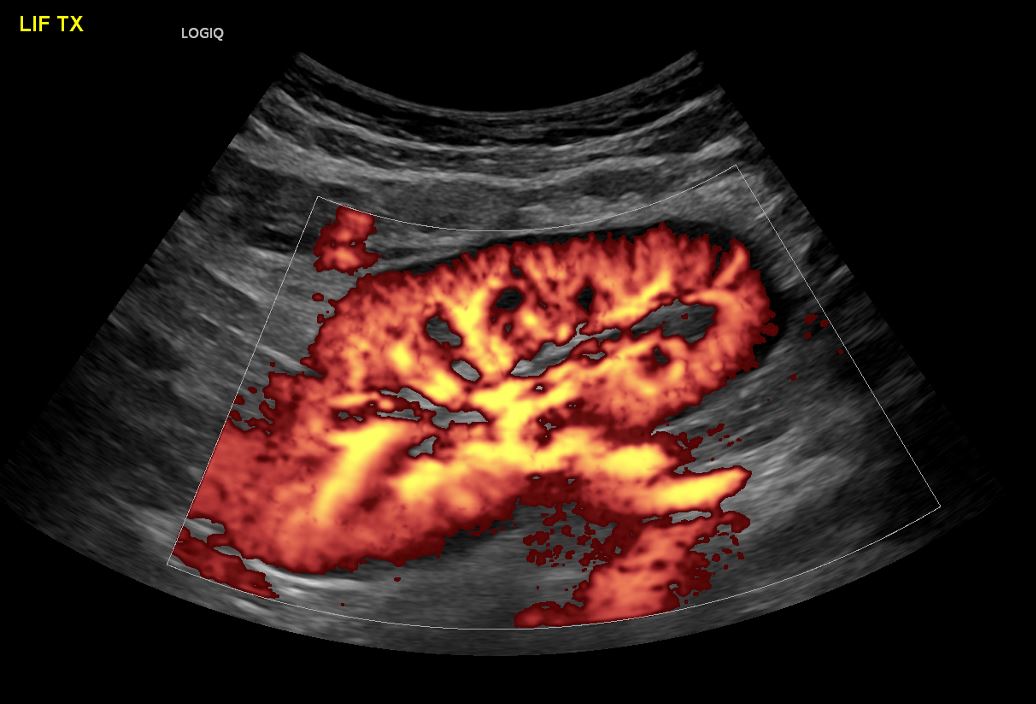

Power Doppler imaging of the normal transplant kidney (renal allograft) showing excellent perfusion of the graft
Power Doppler imaging of the normal transplant kidney showing excellent perfusion of the graft
Colour Doppler imaging of the transplant (renal allograft) renal artery showing the point of anastomosis with the left external iliac artery
Colour Doppler imaging of the transplant renal artery showing the point of anastomosis with the left external iliac artery
Spectral Doppler imaging of the left external iliac artery measuring the peak systolic velocity (PSV) prior to the anastomosis
Spectral Doppler imaging of the left external iliac artery measuring the peak systolic velocity (PSV) prior to the anastomosis
Spectral Doppler imaging of the left external iliac artery measuring the peak systolic velocity (PSV) at the level of the anastomosis
 Spectral Doppler imaging of the left external iliac artery measuring the peak systolic velocity (PSV) at the level of the anastomosis
Spectral Doppler imaging of the transplant renal artery
Spectral Doppler imaging of the transplant renal artery
Spectral Doppler of the segmental artery within the transplant kidney
Spectral Doppler of the segmental artery within the transplant kidney
Spectral Doppler of the intrarenal artery at the lower pole
 Spectral Doppler of the intrarenal artery at the lower pole
Spectral Doppler of the intrarenal artery at the interpolar region of the graft
Spectral Doppler of the intrarenal artery at the interpolar region of the graft
Spectral Doppler of the intrarenal artery at the upper pole
Spectral Doppler of the intrarenal artery at the upper pole
